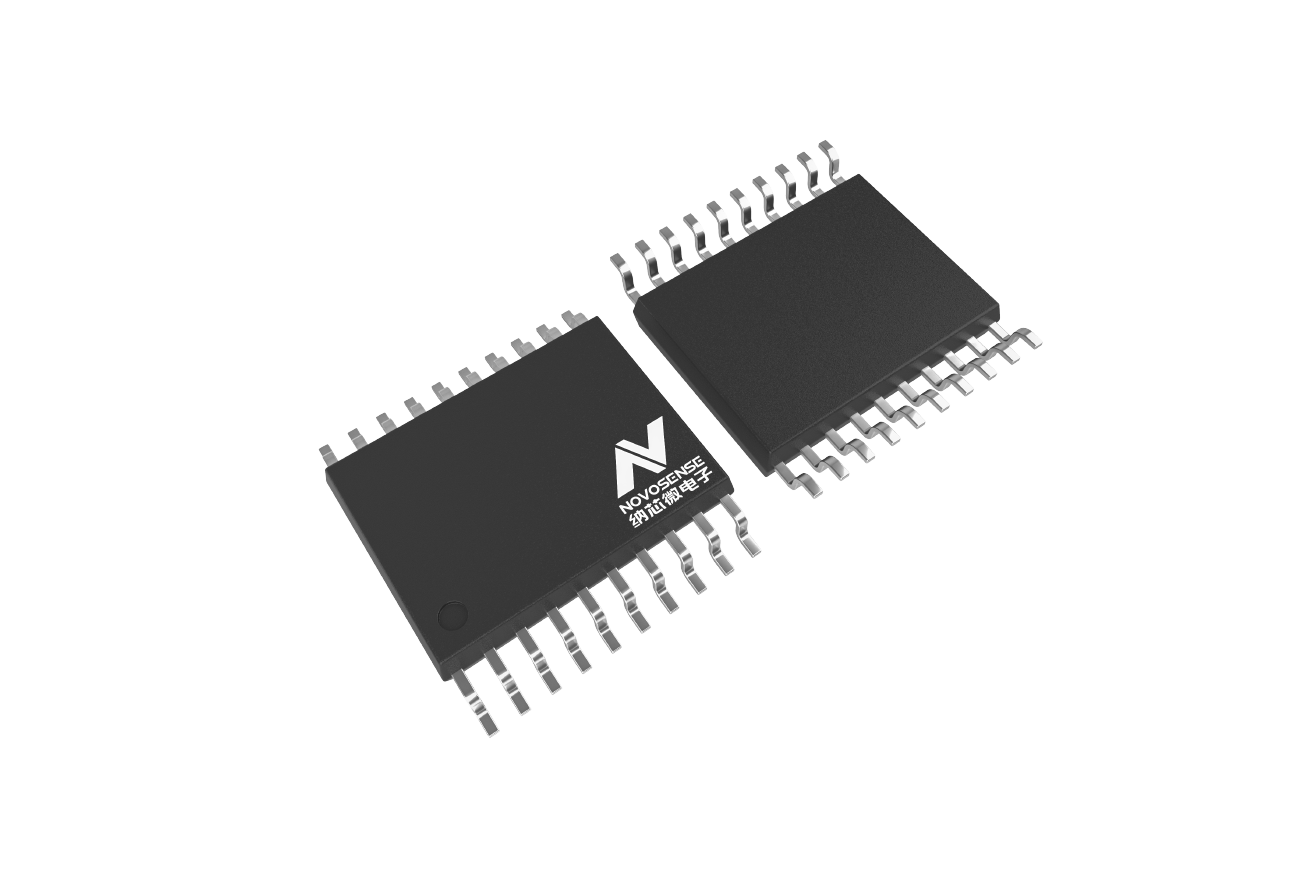

NSAD114x: 16-bit, Delta-Sigma(Δ-Σ), Analog-to-Digital Converters (ADCs)
The NSAD1148/NSAD1147/NSAD1146 are low power, low noise, 16-bit, delta-sigma(Δ-Σ), analog-to-digital converters (ADCs). The device contains a cpacitive programmable gain amplifier (cpacitive PGA), with gains of 1, 2, 4, 8, 16, 32, 64 and 128, which allows to achieve rail-to-rail common-mode input range for all gains. These ADCs feature configurable digital filters with low
Product Features
Integrated capacitive PGA with programmable gain (1 to 128), achieves rail-to-rail input range for all gains
Low-latency (single cycle settling) filter options
Simultaneous 50Hz and 60Hz rejection at data rate 2.5Hz, 5Hz, 10Hz, 20Hz in low-latency filter option
Two independent internal excitation current source with range 50uA to 1500uA
Internal 2.048V bandgap reference with ±0.02% initial accuracy and 3 ppm/°C temperature drift
Product introduction
Product feature
NSAD1148/NSAD1147/NSAD1146: 16-bit, Delta-Sigma(Δ-Σ),
Analog-to-Digital Converters (ADCs)
Application
Internal 4.096MHz oscillator with ±1% Accuracy
Internal Temperature Sensor with ±1% accuracy
System monitors
Self offfset and system calibration
Up to 8 general-purpose I/Os
Analog Supply: Unipolar (3~5 V) or Bipolar (±1.5~±2.5 V)
Digital Supply: 3 V to 3.6 V
Application
Temperature measurement (RTD, Thermocouples)
Pressure measurement
Factory automation and Industrial process control
Instrumentation
