NSM2031-Q0 series is an automotive chip-level current sensor launched by NOVOSENSE which can provide a high-precision solution for large range current detection based on magnetic ring. It is widely used in the phase current detection of electric vehicle electric drive system and the large current detection of current module in industrial system.
• Working environment temperature: - 40 ℃ ~ 150 ℃
• Wide programmable sensitivity range: 0.5 ~ 15 mV/G
• High precision, low temperature drift
• Sensitivity error <±2% over the whole temperature range
• Zero drift <±10 mV in the whole temperature range
• Industry-leading noise performance
• High bandwidth and fast response
• 3dB 240kHz bandwidth model, response time 2.2μs
• Industry leading ESD performance
• HBM: ±8kV
• CDM: ±2kV

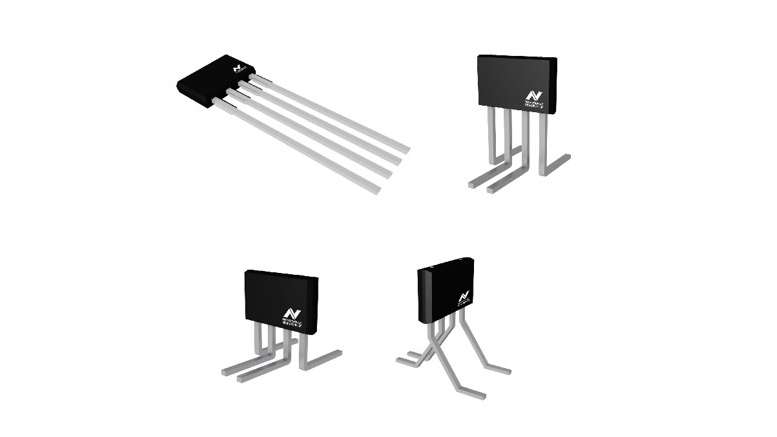

• 1 mm, TO94 package and a variety of pin bent form
• Support proportional output or fixed output
• Over-current protection, users can configure over-current protection output threshold for the current range of 50% to 200%
• Different models the optional power supply, 3.3V or 5V single power supply work
• Comply with RoHS standard packaging
• AEC-Q100 Grade 0 qualified
• Electric drive system for electric vehicle
• Open-loop current sensor module
• Electric two-wheeled vehicle
